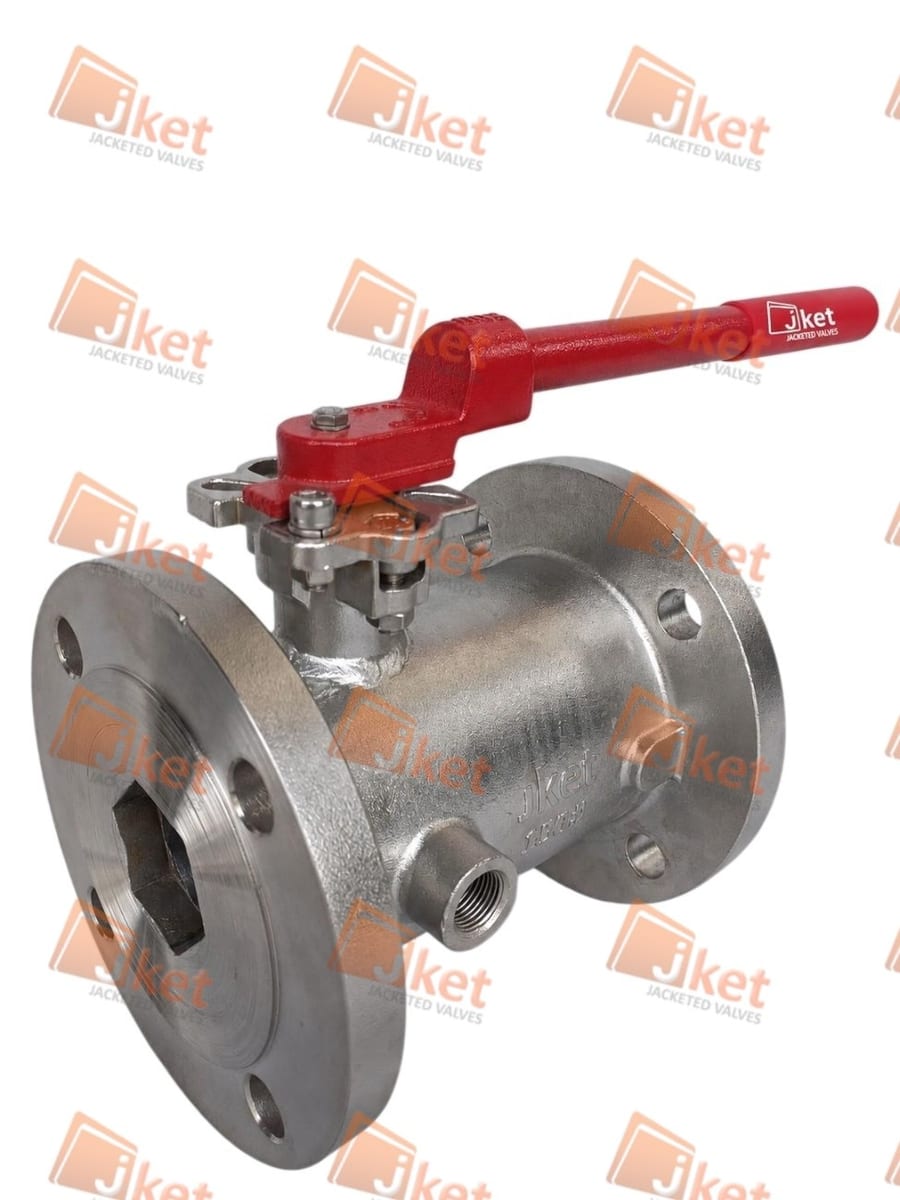

Full Jacketed Ball Valves
DN15, DN300 (½", 12"), rated 150# / 300#, flanged ends to ANSI B16.5, BS10, JIS, DIN, or IS; oversize flanges standard; suited for molten sulfur, bitumen, and asphalt service.
Heating-Jacketed Industrial Valves for High-Viscosity Process Media
CE/PED-certified JKET® jacketed valves, ball, gate, globe, check, and flush-bottom types, stocked and exported to critical process industries across 40+ countries from India since 2011.
2011
In operation since
700+
Units in ready stock
40+
Export markets
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, CE, PED
Certifications
700+ jacketed valves in ready stockUnited Arab EmiratesSaudi ArabiaEgyptSouth AfricaBrazilKuwait+27
ISO 9001:2015ISO 14001:2015ISO 45001:2018CE / PED (Pressure Equipment Directive)
Supplier-declared, pending confirmation
JKET® Jacketed Valve Range

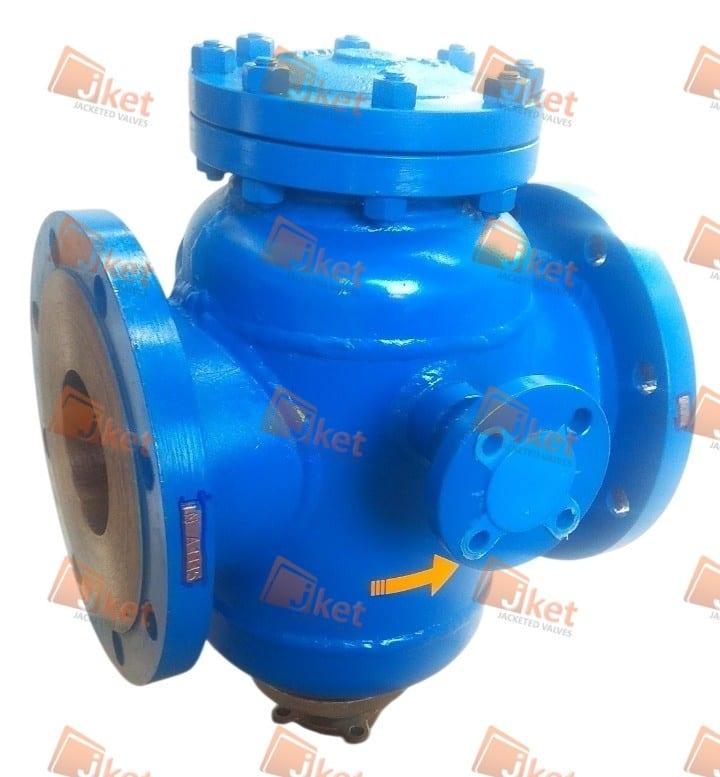

Full Jacketed Check Valves
Three configurations, disc check (DN25, DN200, wafer, 150# / PN40, spring-loaded), dual plate check (DN100, DN600, wafer, 150# / 300#, metal-to-metal seat), and swing check (DN15, DN600, tilting disc option, heavy-duty cast body), for unidirectional flow in high-temperature viscous media.
- Full Jacketed Disc Check Valve
- Full Jacketed Dual Plate Check Valve
- Full Jacketed Swing Check Valve
Full Jacketed Flush Bottom Ball Valves
DN50, DN150 (2", 6"), rated 150#, zero dead-space design; leakage class 5 (metal seat) or class 6 (soft seat); oversize flanges; engineered for complete drain-out of polymer resins and sticky media from reactor vessels.

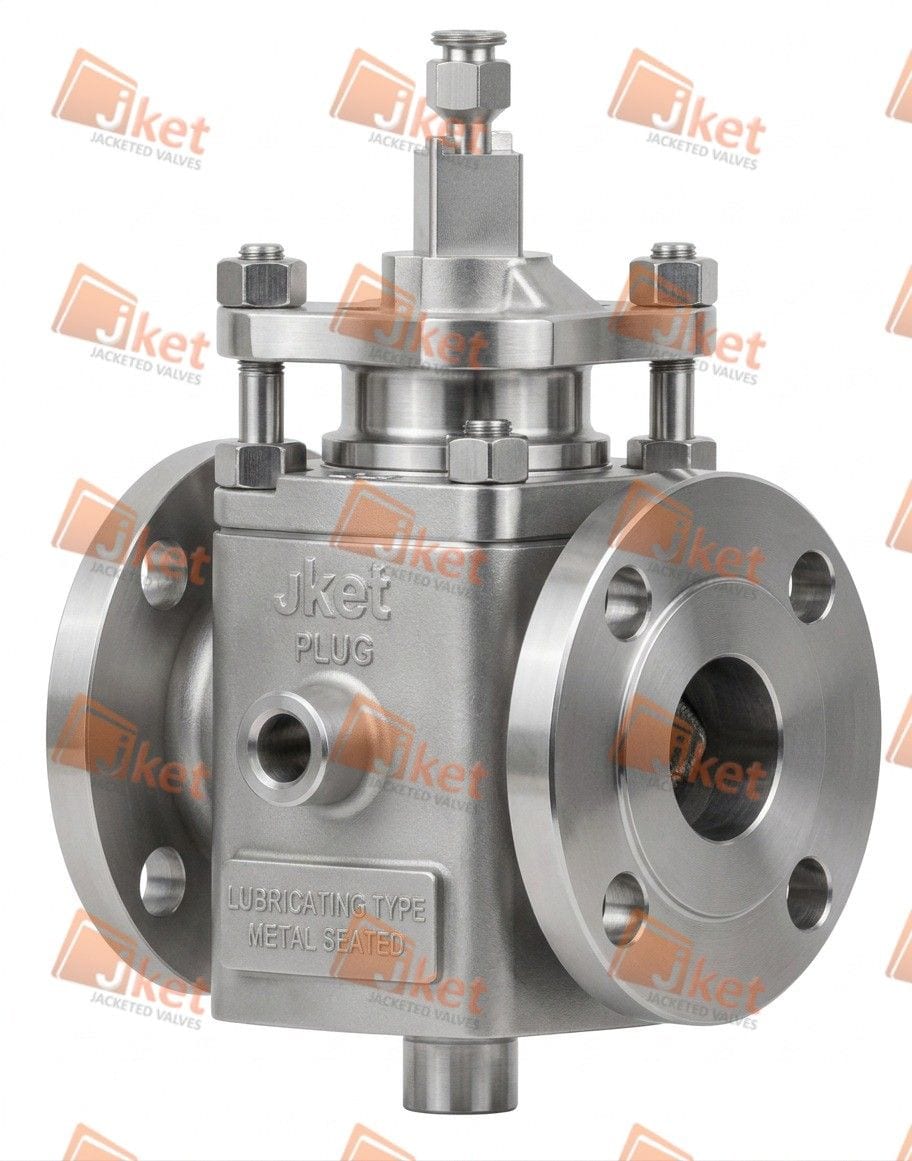

Half Jacketed Valves
Localized heating configuration covering ball, gate, globe, plug, and swing check types; half-jacketed Lubricating Taper Plug Valves with tight shut-off for pitch and resin service where full-body jacketing is not required.
- Half Jacketed Ball Valve
- Half Jacketed Gate Valve
- Half Jacketed Globe Valve
- Half Jacketed Lubricating Taper Plug Valve
- Jacketed PTFE Sleeved Plug Valve
Full Jacketed Strainers
Y-type and basket configurations with a heat-jacketed body to prevent solidification of viscous or thermally sensitive process fluids at the straining point.
- Full Jacketed Y-Type Strainer
- Jacketed Basket Strainer

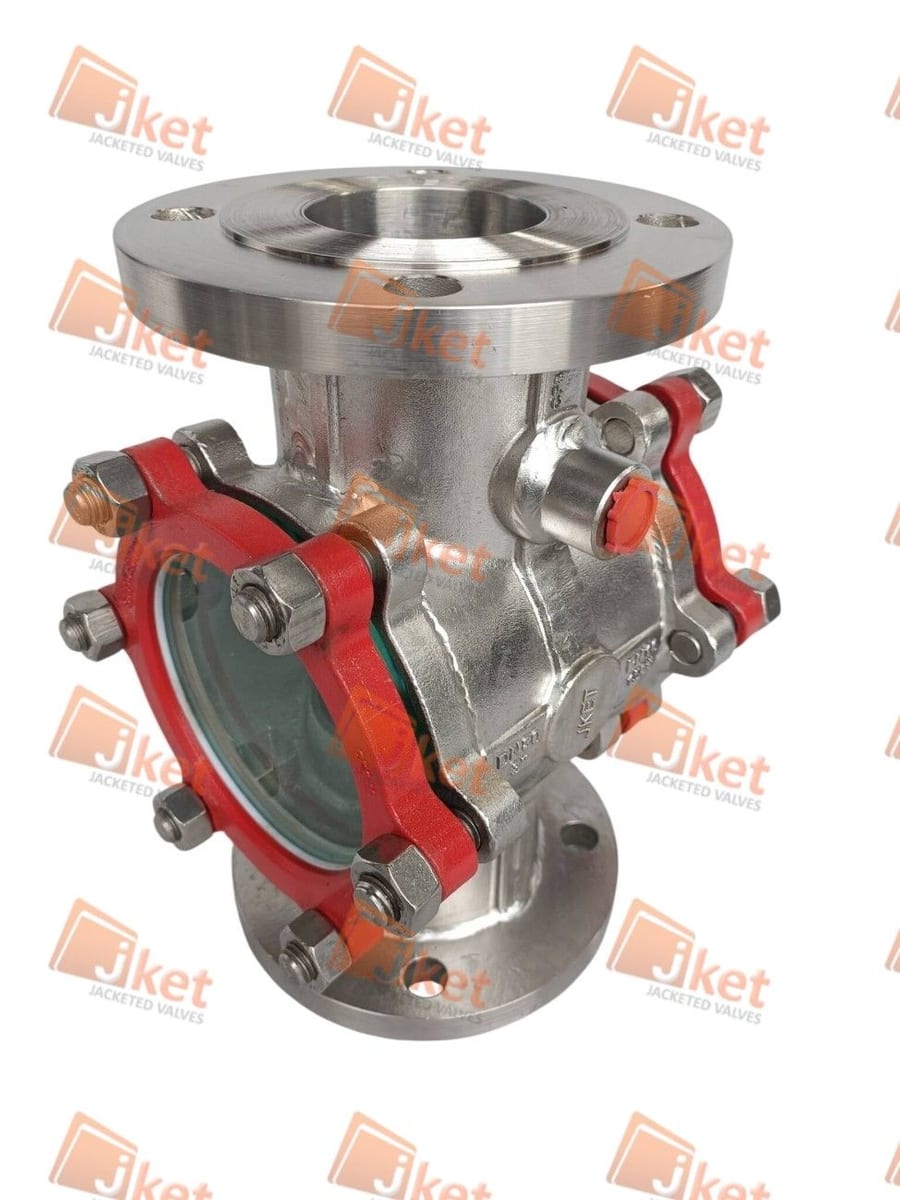

Full Jacketed Sight Flow Indicators
DN15, DN100, double-window design, heat-jacketed body; allows visual flow confirmation in high-temperature or opaque media without risking solidification at the viewing port.
Why Specify JKET® Valves
Complete jacketed range, one source
Ball, gate, globe, check, flush-bottom, plug, strainer, and sight flow indicator types are all manufactured under the JKET® programme, allowing a single-vendor bill of materials for an entire jacketed piping system.
CE / PED certification for EU supply
All JKET® valves carry CE marking under the Pressure Equipment Directive (PED), supporting compliant supply to European end-users without additional third-party re-certification at the buyer's end.
700+ units available from stock
Ready inventory of more than 700 jacketed valves reduces lead times for urgent process shutdowns or plant expansions, particularly relevant for buyers in the petrochemical and refining sectors.
Validated for critical process media
The range is engineered and application-tested for molten sulfur, bitumen, asphalt, polymer resins, and other high-viscosity or thermally sensitive fluids where valve solidification is a documented failure mode.
Three-system management certification
ISO 9001:2015 (quality), ISO 14001:2015 (environment), and ISO 45001:2018 (occupational health and safety) are maintained concurrently, reflecting the manufacturing discipline required for safety-critical valve supply.
Flange standards across all major markets
ANSI B16.5, BS10, JIS, DIN, and IS flange drilling is offered on the same valve body, removing the need for reducing flanges when integrating into existing pipework in North American, European, or Asian installations.
Sourcing FAQ
What type of supplier is Exclusive Jacketed Valves Manufacturer, a trading house or a direct manufacturer?
The company is a direct manufacturer of the JKET® valve range, operating from India. All valves in the programme are produced in-house under ISO 9001:2015 quality management, not sourced from third-party factories and re-sold.
Which process media and industries are the JKET® valves engineered for?
The range is specifically designed for high-viscosity, high-temperature media including molten sulfur, bitumen, asphalt, and polymer resins. Typical end industries include petrochemicals, refineries, asphalt and road-surfacing plants, and polymer processing facilities where valve solidification is a known operational risk.
Do the valves carry CE / PED certification, and are they available with other conformity documentation?
Yes, all JKET® valves are CE marked under the Pressure Equipment Directive (PED), enabling direct supply to EU-regulated plants. The manufacturer also holds ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018. Specific material test reports, hydrostatic test certificates, and third-party inspection can be discussed at the inquiry stage.
Which flange standards are available, and what size and pressure ratings does the range cover?
Flanged ends are available drilled to ANSI B16.5, BS10, JIS, DIN, and IS standards. Sizes range from DN15 (½") up to DN600 (24") depending on valve type. Pressure ratings of 150# and 300# (ANSI) and PN40 are offered across the range; the Full Jacketed Flush Bottom Ball Valve is rated 150# and specified to leakage class 5 (metal seat) or class 6 (soft seat).
Is stock available for immediate shipment, and which countries do you currently export to?
More than 700 jacketed valves are held in ready stock, which shortens delivery for standard configurations. The manufacturer currently exports to 40+ countries including the United States, United Arab Emirates, Saudi Arabia, Australia, the Netherlands, Italy, Brazil, and several others across MENA, EU, SEA, and LATAM regions.
How do I request pricing or arrange a technical discussion?
Complete the inquiry form on this page with your valve type, size, pressure class, media, and required quantity. The technical team will respond with a datasheet, pricing, and availability confirmation. For urgent requirements, reference your process conditions and preferred flange standard to accelerate the response.
