CF Series dedusters deliver residual dust below 50 PPM for plastics, food-grade, and chemical pellet processors, 13 models, one proven platform.
Supplier-declared, pending confirmation

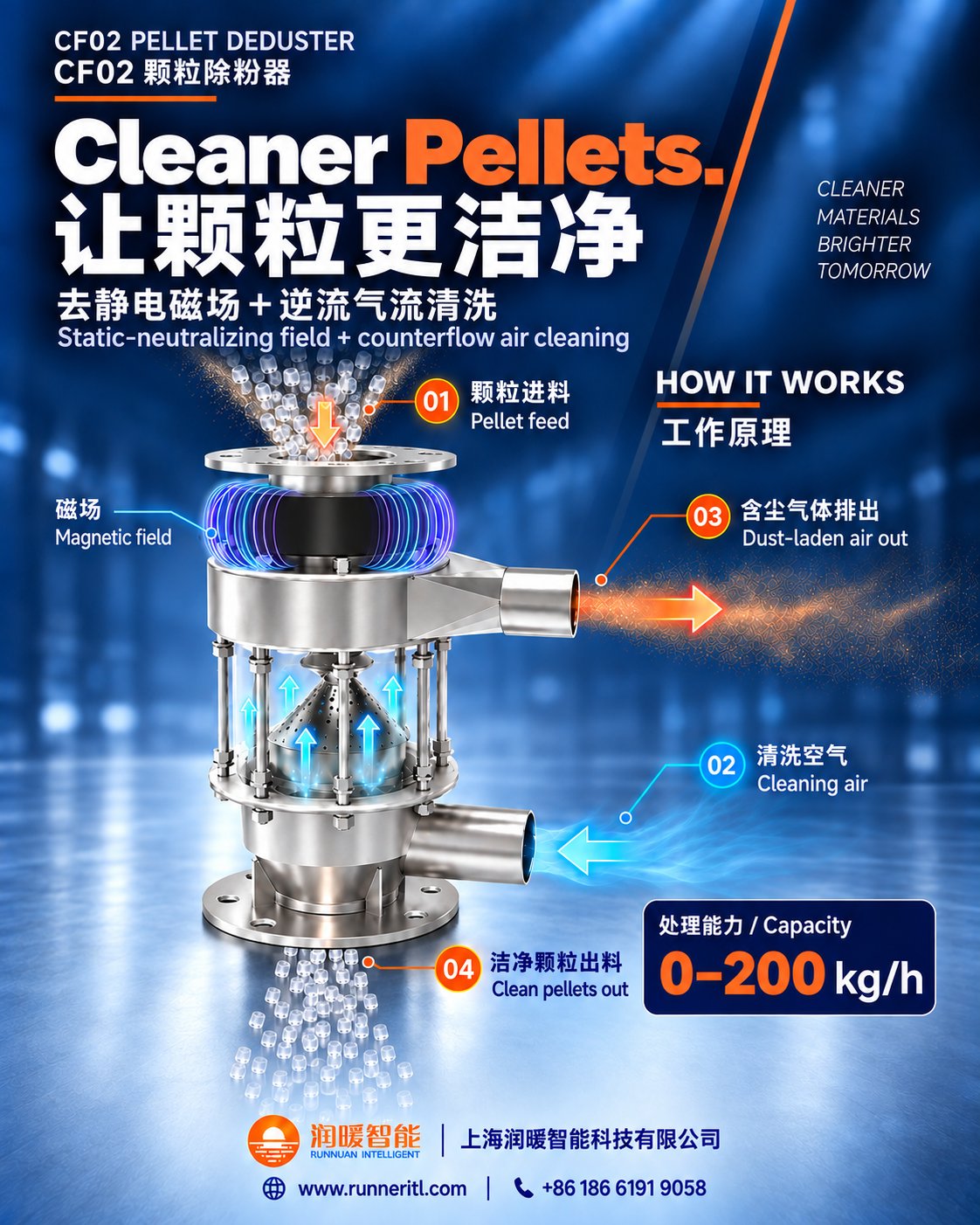

0, 200 kg/h; static-neutralizing field + counterflow air cleaning; bench-scale or laboratory lines.

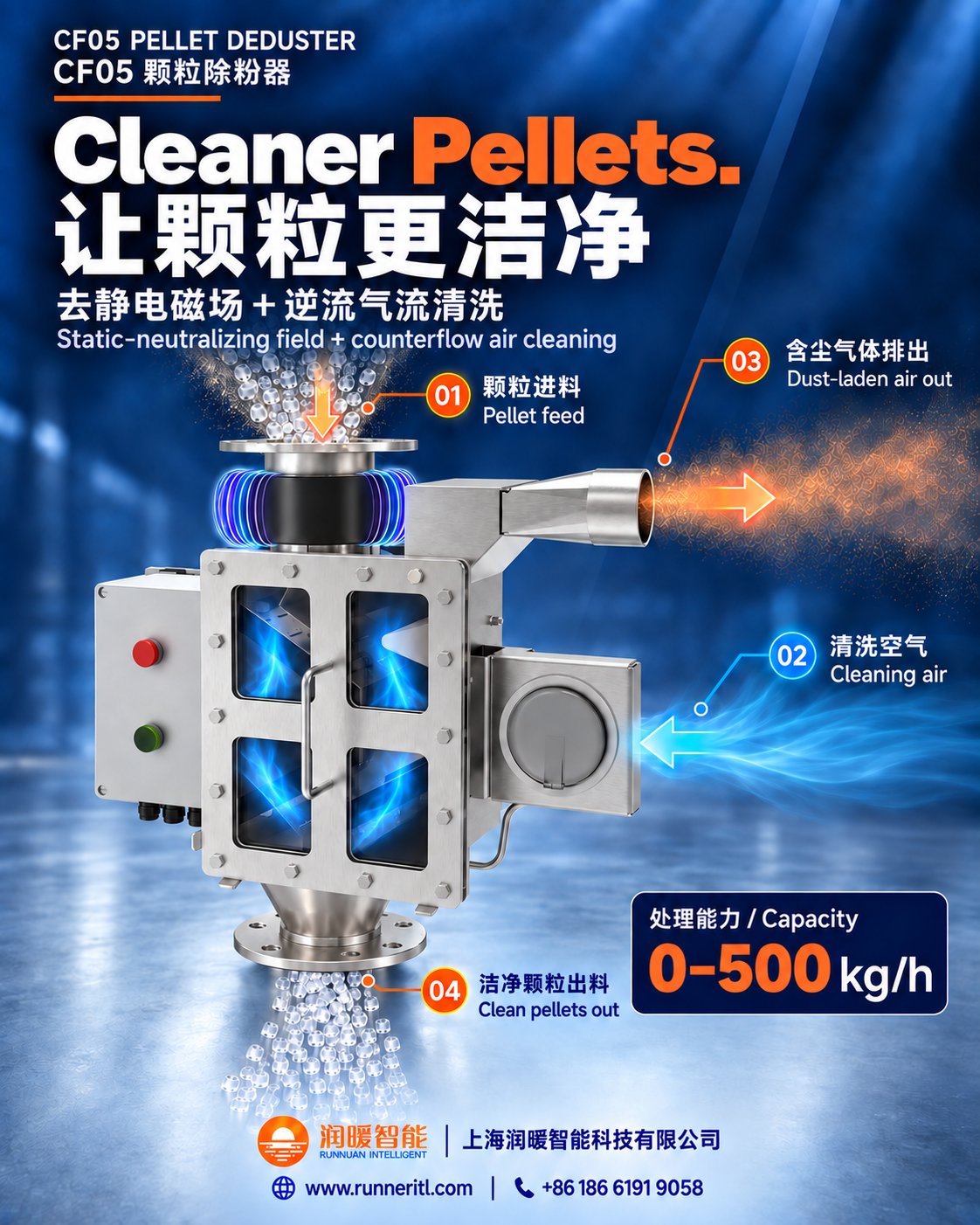

0, 500 kg/h; static-neutralizing field + counterflow air cleaning; small production or trial runs.
500, 1,500 kg/h; flange-to-flange 600 mm; suited for compounding lines and recycled-material processors.
1,500, 5,000 kg/h; flange-to-flange 840 mm; engineering plastics and food-grade pellet lines.
5,000, 10,000 kg/h; flange-to-flange 840 mm; chemical and pharmaceutical pellet applications.
10,000, 20,000 kg/h; flange-to-flange 1,020 mm; medium-volume polyolefin and specialty resin lines.
20,000, 40,000 kg/h; flange-to-flange 1,020 mm; high-volume compounding or recycling plants.
40,000, 60,000 kg/h; flange-to-flange 1,480 mm; large-scale resin production facilities.
60,000, 80,000 kg/h; flange-to-flange 1,780 mm; bulk petrochemical or masterbatch operations.
80,000, 95,000 kg/h; flange-to-flange 1,780 mm; high-capacity polyethylene or polypropylene lines.
95,000, 110,000 kg/h; flange-to-flange 1,910 mm; very high throughput resin or chemical pellet plants.
110,000, 150,000 kg/h; flange-to-flange 2,400 mm; the largest model for world-scale polymer or chemical pellet production.
The static-neutralizing field discharges electrostatically bound fines before counterflow air carries them out, consistently achieving residual dust levels below 50 PPM across pellet types.
From 200 kg/h laboratory lines to 150,000 kg/h world-scale plants, every CF model drops inline between standard flanges with no conveying interruption and minimal civil work.
Product-contact surfaces are available in FDA-compliant materials, allowing the same platform to serve food-grade, pharmaceutical, and chemical applications without separate equipment.
Production at the Shanghai facility operates under ISO 9001 quality management, providing importers and distributors a documented quality record for their own supplier qualification processes.
The CF-5, rated at 0.75 kW for up to 1,500 kg/h, illustrates the series design principle: counterflow air cleaning is energy-efficient relative to filter-based alternatives at comparable throughput.
The CF Series handles standard plastic pellets, engineering plastics, recycled materials, chemical pellets, and food-grade pellets from a single equipment platform, reducing SKU complexity for distributors.
The CF Series is designed for standard plastic pellets, engineering plastics, recycled materials, chemical pellets, and food-grade pellets. Documented applications include plastics processing, chemical manufacturing, food production, pharmaceutical pellets, and electronics manufacturing.
The 13-model CF Series spans 0 to 150,000 kg/h. The CF02 starts at 0, 200 kg/h and the CF1500 reaches 110,000, 150,000 kg/h, with intermediate models at defined throughput steps to match line capacity precisely.
CF Series pellet dedusters are classified under HS code 8421.39 (filtering or purifying machinery for gases, other). Importers should confirm classification with their customs broker, as national tariff schedules may differ.
Shanghai Runnuan Intelligent Technology Co., Ltd. is the manufacturer of the CF Series. Units are produced at the company's Shanghai facility under ISO 9001 quality management.
Yes. Product-contact surfaces can be supplied in FDA-compliant materials for food-grade and pharmaceutical pellet applications. Specify the intended material when requesting pricing so the correct configuration is quoted.
Complete the inquiry form on this page with your pellet type, target throughput in kg/h, and application. The team will respond with a model recommendation and pricing. Sample or trial arrangements can also be discussed through the same form.
