Electromagnetic Flow Meters
AMF-5100 covers line sizes 15, 3000 mm with 0.2%, 1.0% accuracy, tri-electrode design, and 4-20mA/Pulse/RS485/HART output; explosion-proof rated.
- AMF-5100 Electromagnetic Flowmeter
Flow Meters, Level Transmitters, and Pneumatic Valves for Process Automation
Absolute Instruments supplies ATEX-certified instrumentation to importers and distributors across industrial process markets. Inquiry response within one business day.
8
Product categories
9026.10, 9026.20, 8481.80, 9031.80
HS codes covered
ATEX, Explosion Proof, IP67, IP68
Certifications
Explosion ProofATEXIP67IP68
Supplier-declared, pending confirmation
Instrumentation and Valve Products
Vortex and Ultrasonic Flow Meters
7500C Vortex Flowmeter handles -50°C to 350°C in 316L SS construction; UFM-2500 Clamp-On Ultrasonic covers DN25, DN6000 mm with ±1% accuracy and a built-in 24K data logger.
- 7500C Vortex Flowmeter
- UFM-2500 Clamp-On Ultrasonic Flowmeter
Level Transmitters
AR-8500 Radar Transmitter operates at 76, 81 GHz over 0, 100 m with ±1 mm accuracy and Ex dia IIC T6 Gb rating; ULT 2100 Ultrasonic covers 0, 20 m at 0.25, 0.5% accuracy with IP68 and Modbus output.
- AR-8500 Radar Level Transmitter
- ULT 2100 Ultrasonic Level Transmitter

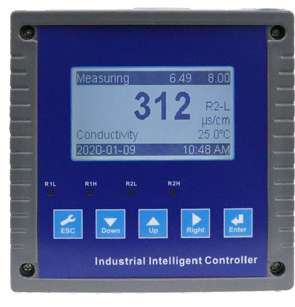

Water Analyzers
Inline analyzers for pH, Conductivity/TDS, ORP, DO, TSS, and COD/BOD; IP68-rated enclosures; ATEX/Ex-proof certified; 4-20mA HART and FOUNDATION fieldbus output.
- pH Analyzer
- Conductivity / TDS Analyzer
- DO Analyzer
- COD/BOD Analyzer
- Analyzer Types
- pH, Conductivity/TDS, ORP, DO, TSS, COD/BOD
- Display
- LCD Display
- Communication
- 4-20mA HART, FOUNDATION fieldbus
- Area Classifications
- Intrinsically safe, Ex Proof, Flameproof, ATEX
- Power Supply
- 24VDC, 220VAC (built-in lightning protection)
- Protection Level
- IP68
Pneumatic Actuated Ball Valves
15, 200 mm line sizes; WCB, CF8, CF8M, or DI body; PTFE/TFM seat; Class 150# and 300# ratings; pneumatic double and single acting actuators available.
- Pneumatic Ball Valve with Rotary Actuator
Pneumatic Actuated Butterfly Valves
40, 400 mm centric design in wafer, lugged, or double-flanged configurations; WCB, CI, CS, or DI body; pneumatic double and single acting actuators.
- Pneumatic Butterfly Valve with Rotary Actuator
Why Source From Absolute Instruments
Hazardous-area certified products
Key instruments carry ATEX, Explosion Proof, IP67, and IP68 certifications, supporting deployment in refineries, chemical plants, and other classified environments without additional approval steps.
Wide line-size and media coverage
Flow measurement products span DN15 to DN6000 mm across electromagnetic, vortex, and ultrasonic technologies, so distributors can source multiple meter types from a single supplier.
Standard industrial communication outputs
Products ship with 4-20mA, HART, RS485, Modbus, Pulse, and FOUNDATION fieldbus outputs, integrating directly into existing DCS and SCADA architectures.
Multi-parameter water quality range
The water analyzer line covers pH, Conductivity/TDS, ORP, DO, TSS, and COD/BOD in a single IP68 and ATEX-rated product family, reducing vendor count for water treatment projects.
Matched valve and instrument offering
Pneumatic ball and butterfly valves in sizes 15, 400 mm complement the instrumentation range, allowing importers and wholesalers to package complete process loops.
Sourcing FAQ
What types of flow meters does Absolute Instruments supply?
The portfolio covers electromagnetic (AMF-5100, line sizes 15, 3000 mm), vortex (7500C, 15, 200 mm, -50°C to 350°C), and clamp-on ultrasonic (UFM-2500, DN25, DN6000 mm) flowmeters, all with 4-20mA/HART/RS485 output options.
Are the instruments certified for hazardous locations?
Yes. Selected products carry ATEX, Explosion Proof, IP67, and IP68 certifications. The AR-8500 Radar Level Transmitter, for example, is rated Ex dia IIC T6 Gb, and the water analyzers hold ATEX/Ex-proof certification. Verify applicable approvals for your specific project requirements.
Which HS codes apply to these products?
Flow measurement instruments fall under 9026.10 and 9026.20; pneumatic valves under 8481.80; and other process measurement instruments under 9031.80. Confirm classification with your customs authority before import.
Is Absolute Instruments a manufacturer or a trading company?
Absolute Instruments is a supplier of process automation instrumentation and valves. For clarification on manufacturing arrangements relevant to your sourcing requirements, please raise this in your inquiry.
Which buyer types does Absolute Instruments work with?
The company serves importers, distributors, and wholesalers across industrial process markets, including mixed-size buyers.
How do I request pricing or product specifications?
Use the inquiry form on this page to submit your product interest, target line sizes, and any certification requirements. A response is provided within one business day.
